ATSTRIP (Geostrip)

Geostrip –Soil Reinforcement Strip

ATSTRIP (GeoStrip)

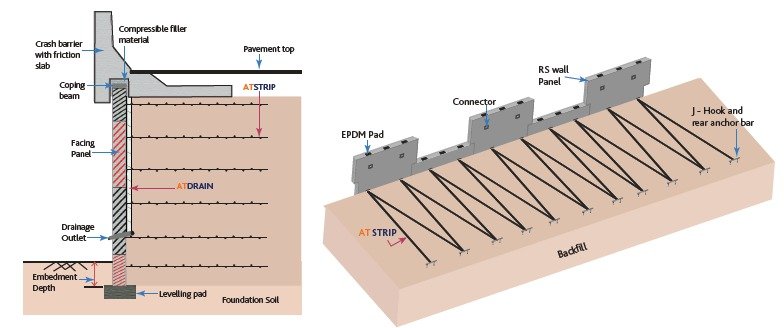

ATSTRIP (Geostrip), manufactured by A&T Geosynthetics, is a geosynthetic product specifically developed for reinforcing backfill materials such as soil or fly ash in reinforced soil wall systems. This application closely supports ground improvement projects, where strength, stability, and durability are essential for modern infrastructure development

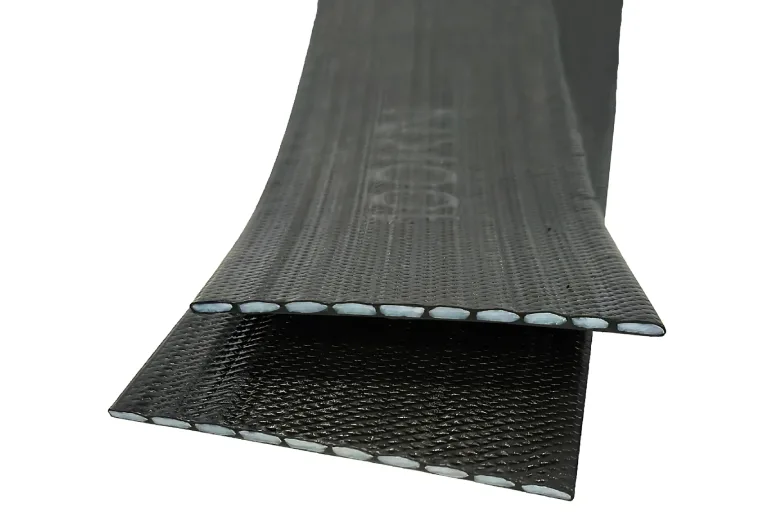

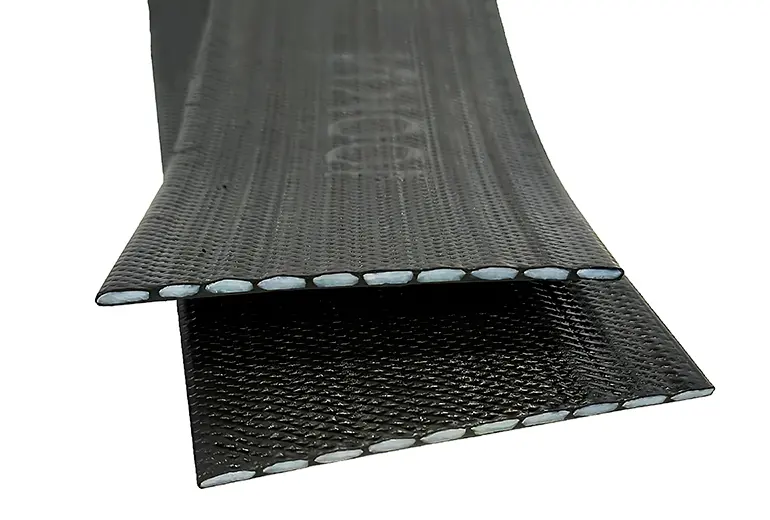

Our advanced ATSTRIP features tendons made from high-strength polyester fibers, carefully arranged into ten individual bundles and protected within a durable polyethylene sheath. The high-performance polyester yarns inside ATSTRIP (Geostrip) are precisely installed under tension, while the polyethylene sheath performs two important functions: protecting the polyester yarns and providing the required size and shape to the strips. This specialized combination delivers excellent load-bearing performance and long-term durability.

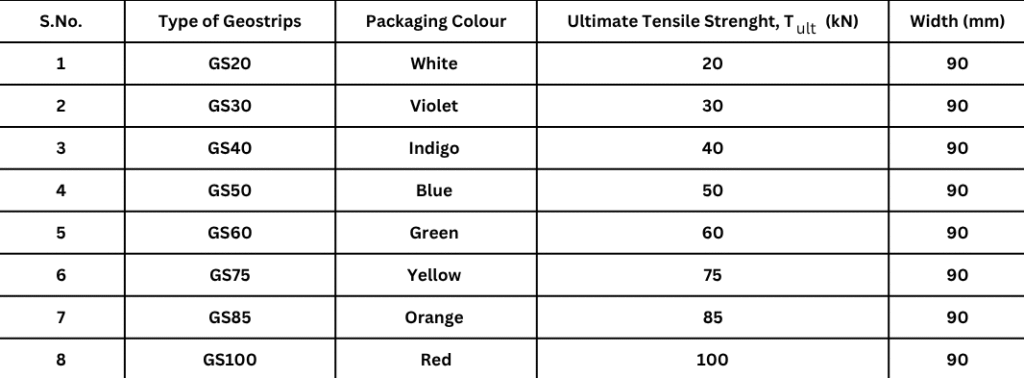

ATSTRIP is offered in a variety of ultimate tensile strengths, providing flexibility for different project needs, with options ranging from 20KN to 100KN. Each strip has a width of 90mm, and ATSTRIP (Geostrip) is generally supplied in rolls of approximately 136 meters in length. In projects such as reinforced soil wall construction in India, ATSTRIP plays an important role in providing strong, economical, and dependable reinforcement solutions.

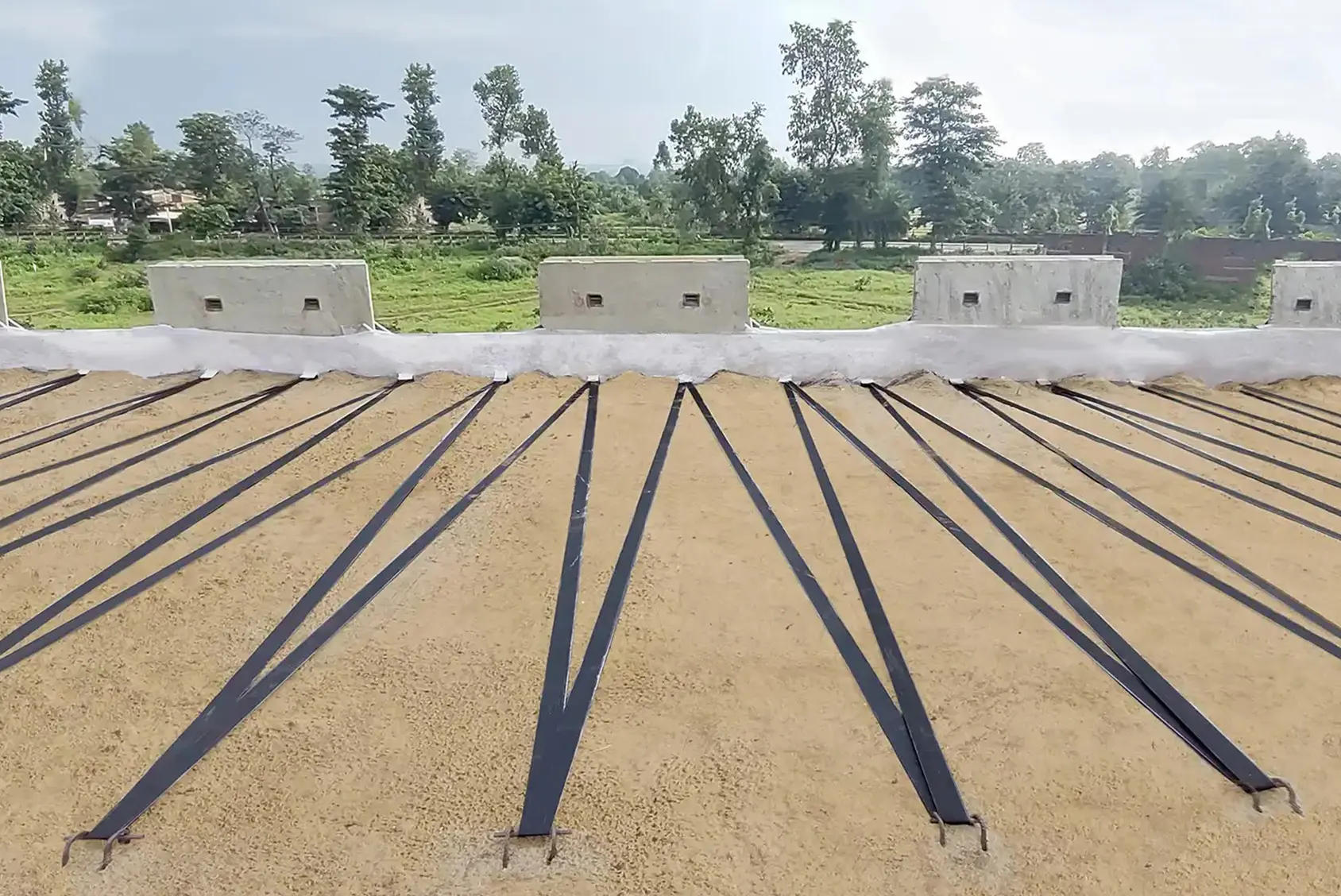

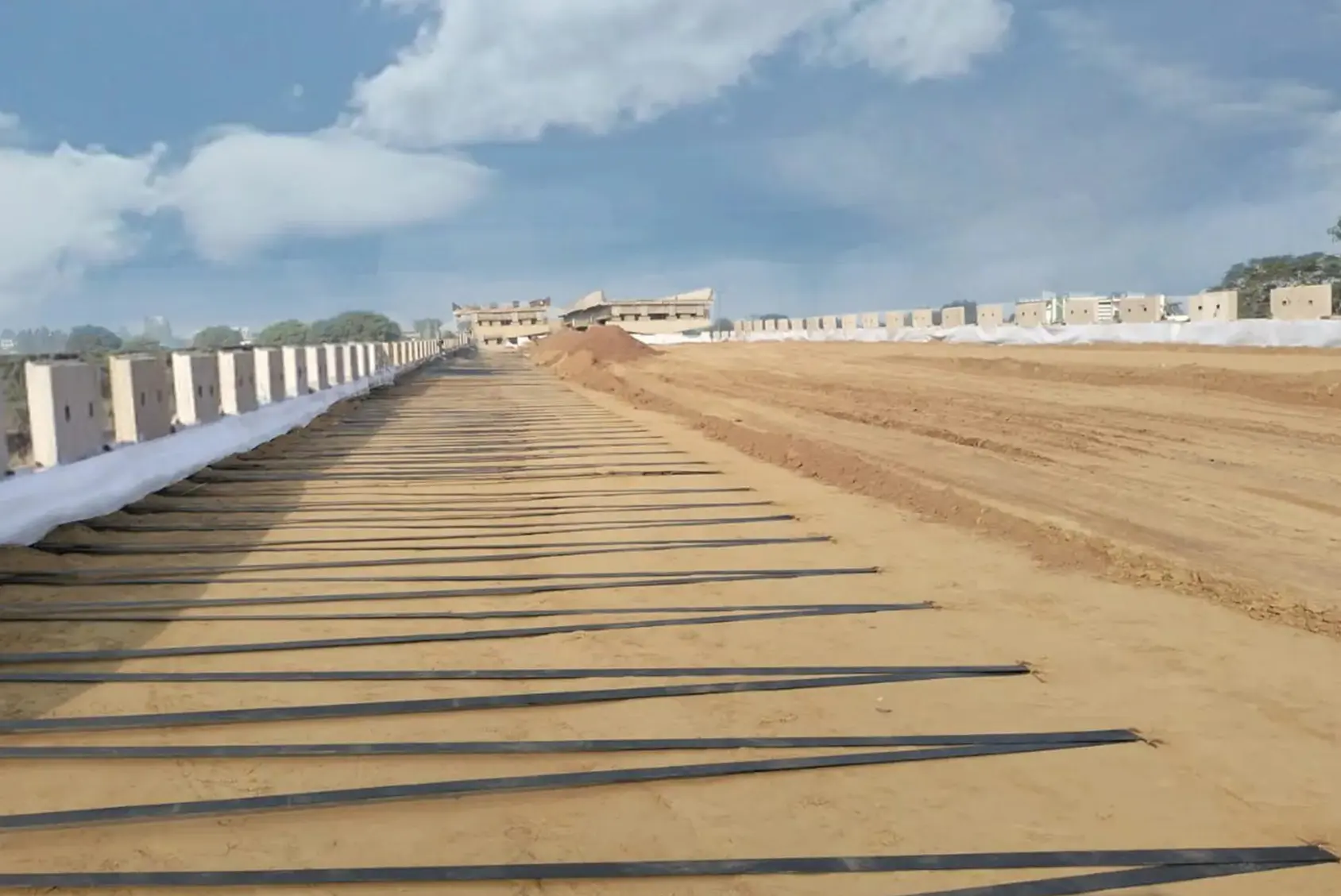

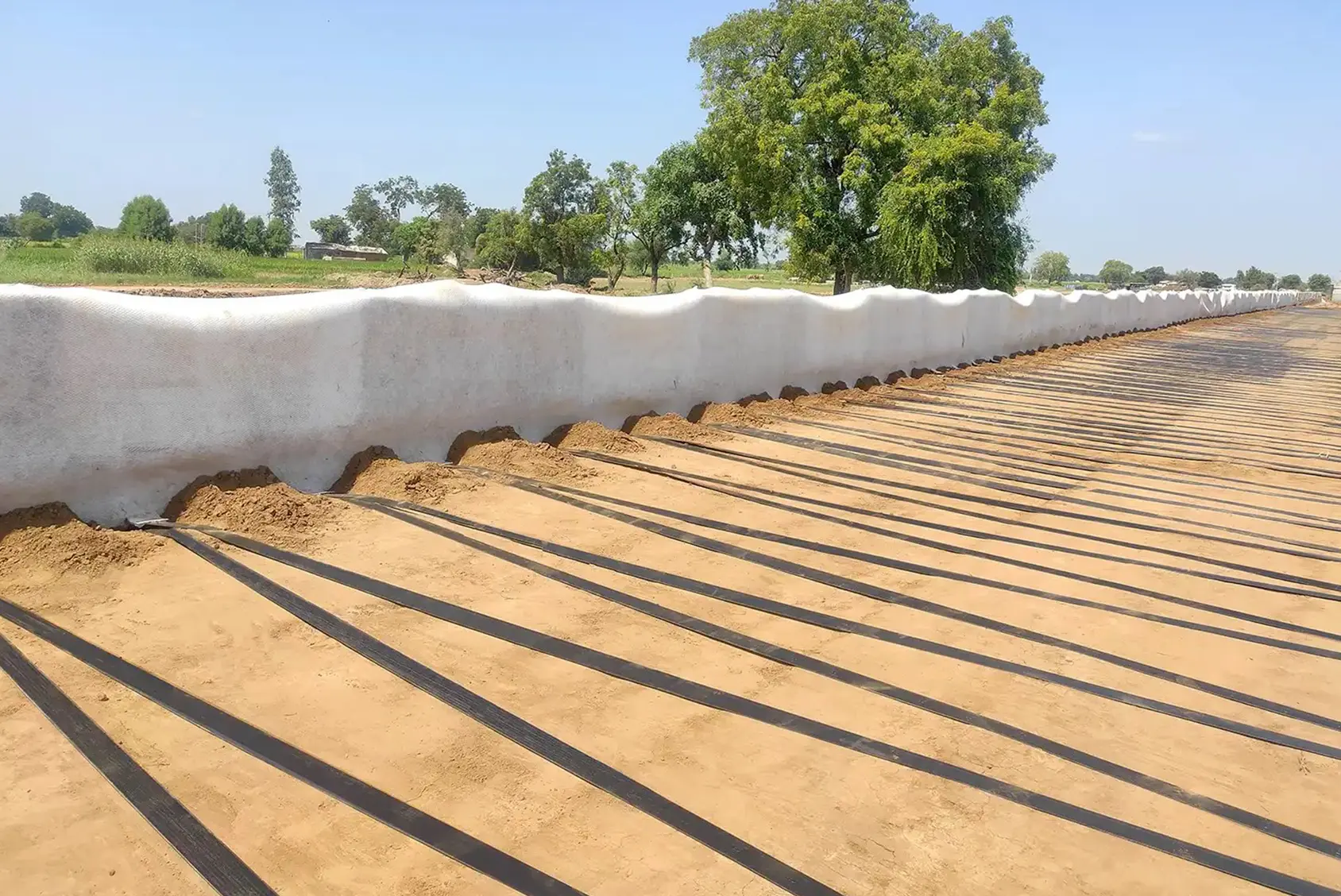

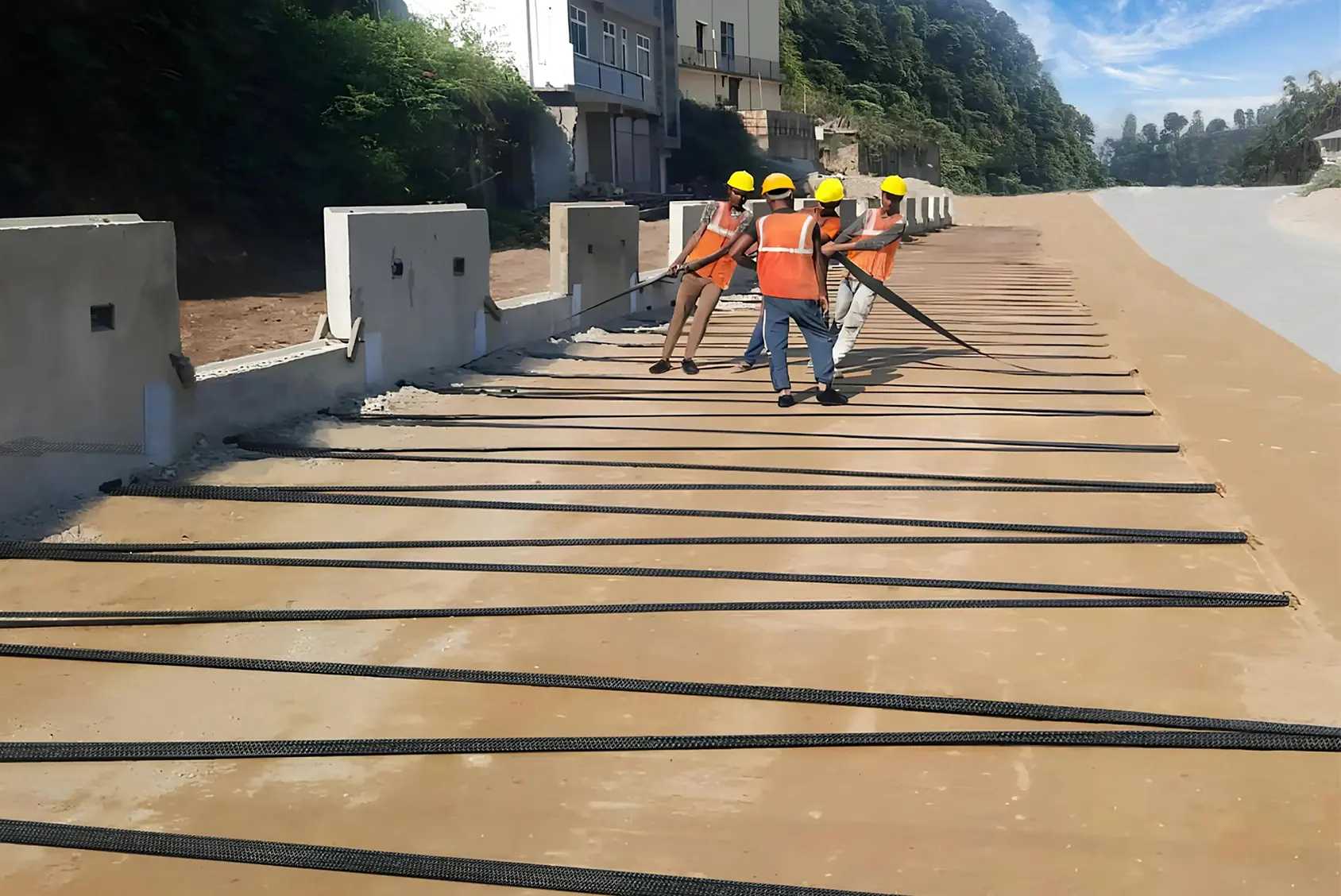

ATSTRIP (Geostrip) is extensively used in reinforced soil wall projects throughout India, where it serves as a key soil reinforcement component. Its high tensile strength, stable dimensions, and compatibility with granular backfill allow efficient load distribution and long-term structural performance, making it a trusted and cost-effective solution for reinforced soil structures.
